4.5 Ton 2 Post Overhead Clearfloor

1233468925924757504

? 10,000-lb. Lift capacity
? Single point lock release
? Dual direct drive hydraulic cylinders
? Oversized 57 degree tall lifting carriages
? Automatic arm restraints
? Truck adapter kit
? Triple telescoping arm design
? Steel aircraft quality equalizing cables
? Matted powder coat finish
? Max rise height with adapters 78-in. (1981mm)
? Three optional variable drive through clearances

在線/離線購買

海運/陸運

產品參數

其他型號

關于產品

Product Information

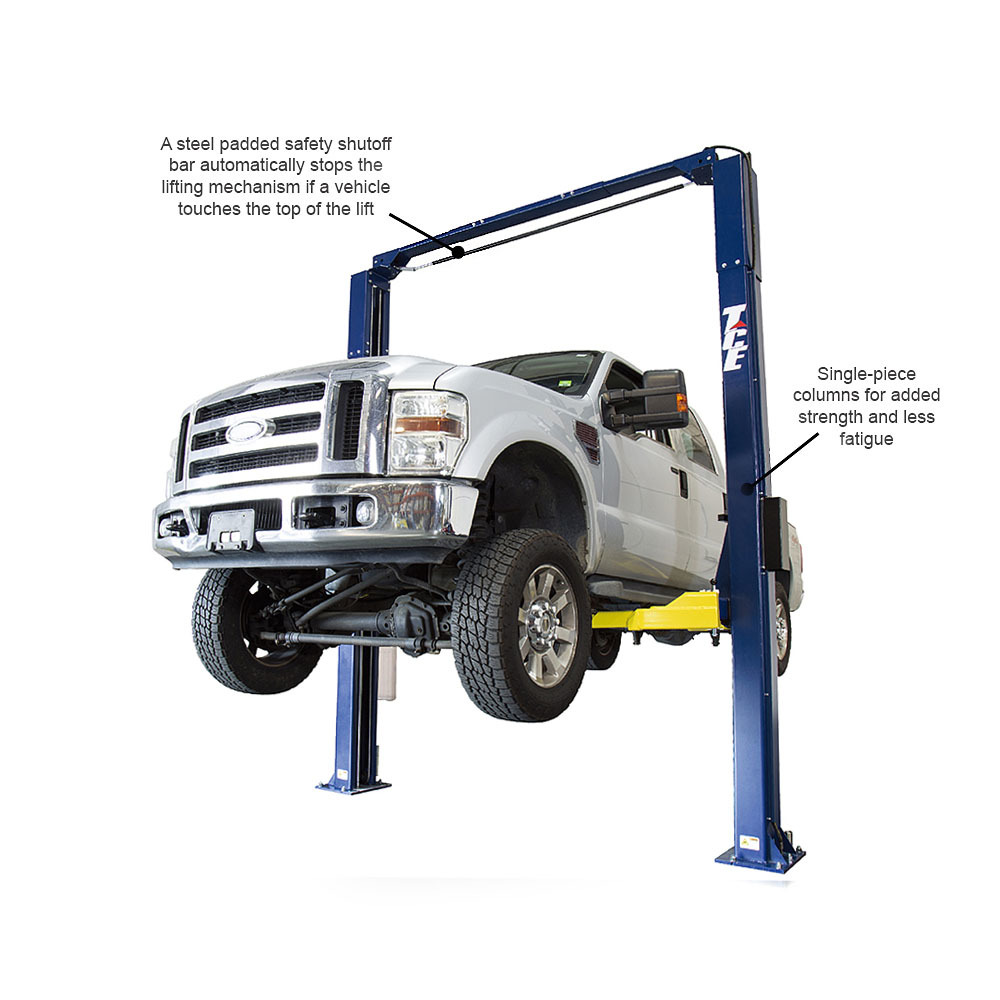

The ALI CERTIFIED 10,000-lb. Overhead Commercial Lift is the newest and best solution that provides ample door opening clearance for entry to vehicles. Each lift is designed using a single piece column, a variable overhead cross-member, and extra tall carriages that all combine to create a very strong and reliable lift design.

Product Parameters

Model	T10000-20H-33	Capacity	4.5 Ton
Max. Rise from ground	1848 mm	Lifting Range	1745 mm
Lowest Clearance from the ground	103 mm	Narrow Drive-Thru Clearance	2239 mm
Medium Drive-Thru Clearance	2389 mm	Wide Drive-Thru Clearance	2359 mm
Standard Overall Height	3650 mm	Tall Overall Optional Height	4235 mm
Max. Load Per Arm	1136 kgs	Lift Structure Weight	860 kgs
Shipping Dimensions	3605x570x955 mm	Power Unit Weight	27.2 kgs
Shipping Dimensions	900x280x320 mm	24" Height Extender Weight	76.2 kgs
Shipping Dimensions	770x440x430 mm	QTY/40'CY	22 PCS

Features

? 10,000-lb. Lift capacity

? Single point lock release

? Dual direct drive hydraulic cylinders

? Oversized 57 degree tall lifting carriages

? Automatic arm restraints

? Truck adapter kit

? Triple telescoping arm design

? Steel aircraft quality equalizing cables

? Matted powder coat finish

? Max rise height with adapters 78-in. (1981mm)

? Three optional variable drive through clearances

Common Problems And Solutions

Sequence of Lockout Procedure

1) Notify all affected employees that a lockout is being performed for servicing or maintenance and that the lift must be shut down and locked out to perform the servicing or maintenance

2) Unload the subject lift (remove vehicle). Shut it down and assure the disconnect switch is "OFF" if one is provided on the lift.

3) The authorized lockout person operates the main energy isolation device removing power to the lift being taken out of service. Stored or residual energy (such as capacitors, springs, elevated machine members, hydraulic systems, air, or etc.) must be dissipated or restrained by methods such as grounding, repositioning, blocking, bleeding down, etc.

If this is a lockable device, the authorized lockout person places the assigned padlock on the device to prevent its unintentional reactivation. An appropriate tag is applied stating the person's name, at least 3" x 6" in size, an easily noticeably color, and states not to operate device or remove tag. If this device is a non-lockable circuit breaker or fuse, replace circuit with a "dummy" device and tag it appropriately as mentioned above.

4) Ensure that the equipment is disconnected from the energy sources' by first checking that no personnel are exposed, then verify the isolation of the equipment by operating the push button or other normal operating controls' or by testing to make certain the equipment will not operate. . Be sure to return any switches to the "OFF" position.

5) The equipment is now locked out and ready for the required maintenance or service.

Restoring Equipment to Service

1) Check the lift and the immediate area around the lift to ensure that nonessential items have been removed (clear all tools, vehicles and personnel) and that the completion of all lift components are operationally intact.

2) The authorized person can now remove the lock (or dummy circuit breaker or fuse) and tag. Activate the energy isolating device so that the lift may again be placed into operation.

成分-

優質液壓油，防止漏油

液壓系統采用高質量的油，提供更好的耐腐蝕性和高/低溫靈活性，允許單元在40華氏度和105華氏度之間的溫度下運行。

自動焊接

該閥采用細鋼焊接而成，操作方便，密封性好，性能可靠，具有自動鎖氣滴料功能。

高密度鋼材

由高級鋼材制成，并按照嚴格的質量和耐用性標準建造。
