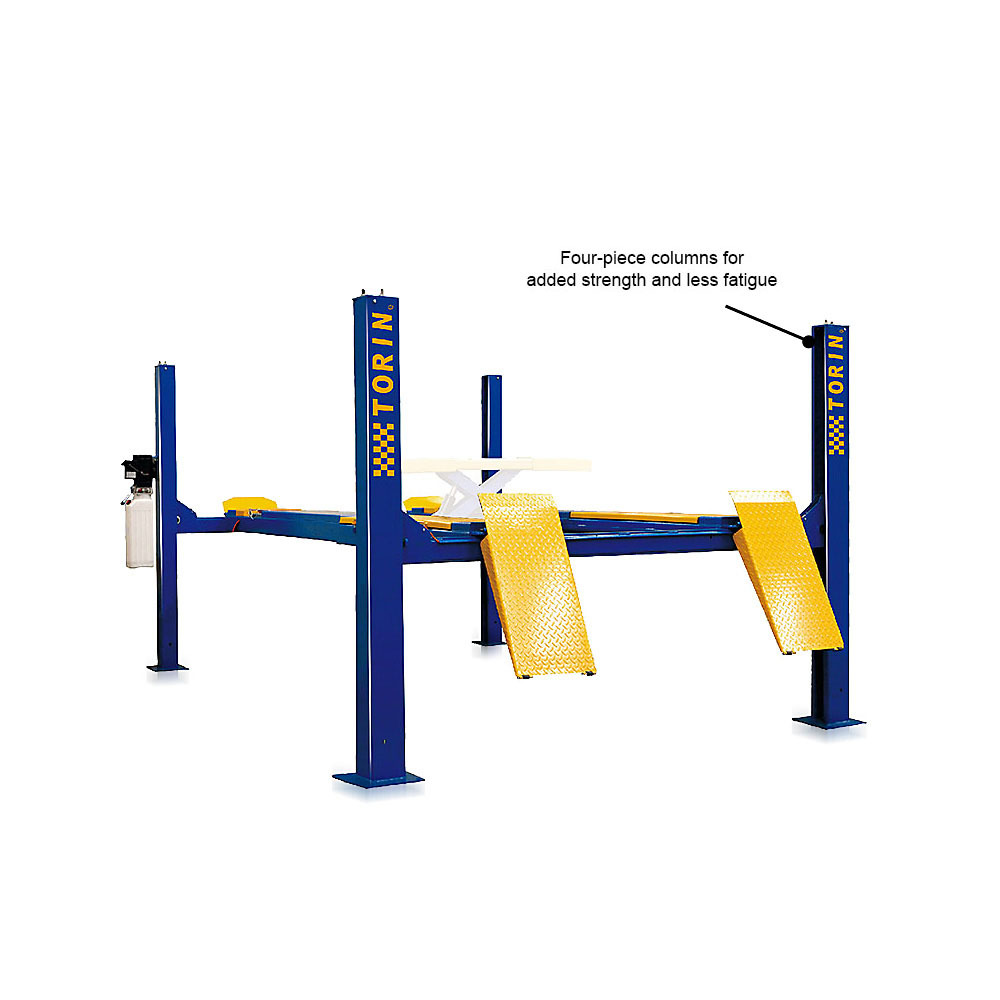

4 Ton Four Post Lift
? Ladder lock system ? Commercial grade synchronizing safety latch system offers a unique two position locking mechanism ? Air locking system ? Adjustable runway widths ? Large heavy-duty 3" cylinder ? Aircraft quality lifting cables ? Matted powder coat finish ? Aluminum alloy front turn plates ? Built in rear slip plates ? Optional Rolling Bridge Jack available
產品參數
其他型號
關于產品
|
Model |
QJY4040-ZJYK |
Capacity |
4 Ton |
|
Min ground clearance |
184 mm |
Max ground clearance |
1944 mm |
|
Rise time |
60 sec. |
Drop time |
45 sec. |
|
Drop time Power of moter |
2.2 kw |
Power of supply |
380V / 220V |
|
Tabel length |
4650 mm |
Tabel width |
480 mm |
|
N.W./G.W. |
1040/1065 kgs |
1#Package size |
4650x560x878 mm |
|
2#Package size |
900x280x320 mm |
QTY/20.CY |
8 PCS |
• Ladder lock system
• Commercial grade synchronizing safety latch system offers a unique two position locking mechanism
• Air locking system
• Adjustable runway widths
• Large heavy-duty 3" cylinder
• Aircraft quality lifting cables
• Matted powder coat finish

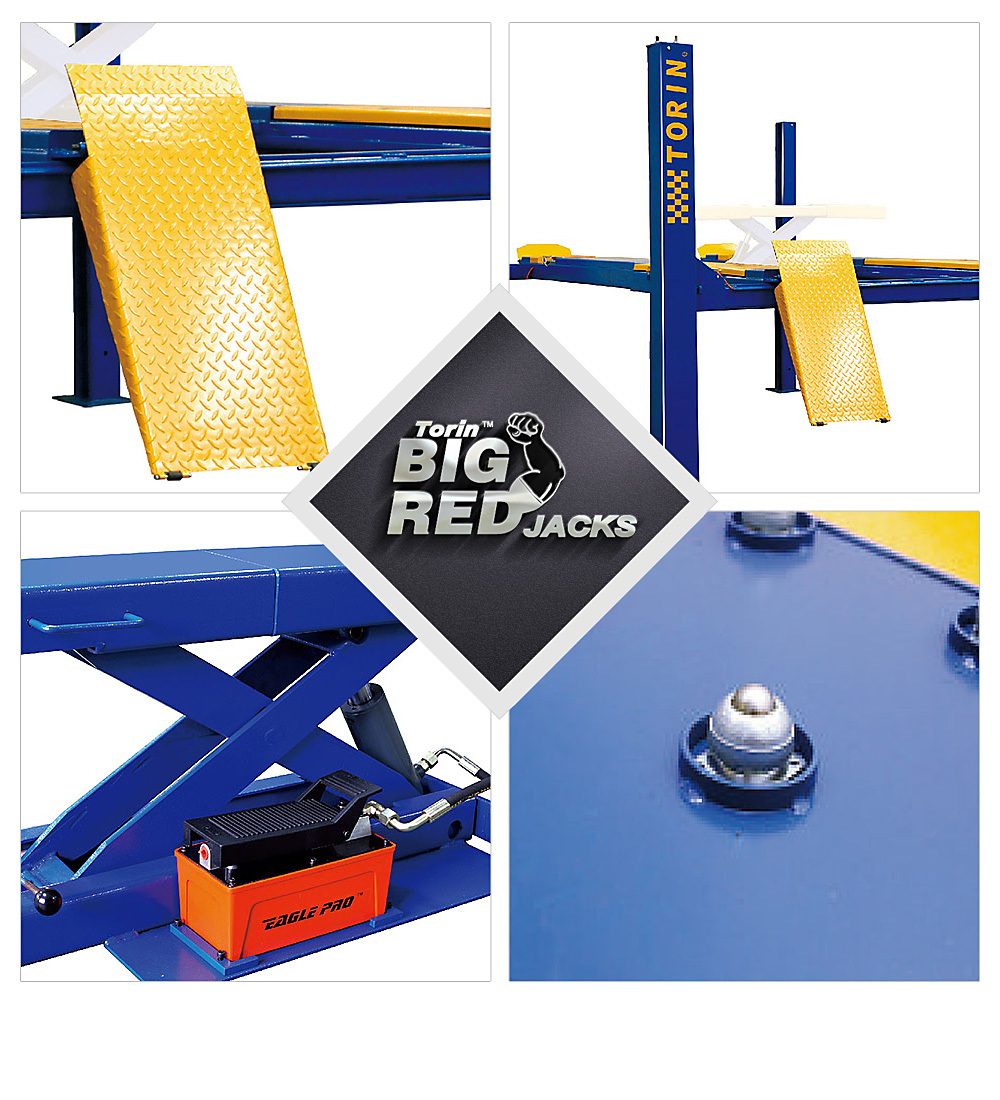

• Aluminum alloy front turn plates
• Built in rear slip plates
• Optional Rolling Bridge Jack available
Sequence of Lockout Procedure
1) Notify all affected employees that a lockout is being performed for servicing or maintenance and that the lift must be shut down and locked out to perform the servicing or maintenance
2) Unload the subject lift (remove vehicle). Shut it down and assure the disconnect switch is "OFF" if one is provided on the lift.
3) The authorized lockout person operates the main energy isolation device removing power to the lift being taken out of service. Stored or residual energy (such as capacitors, springs, elevated machine members, hydraulic systems, air, or etc.) must be dissipated or restrained by methods such as grounding, repositioning, blocking, bleeding down, etc.
If this is a lockable device, the authorized lockout person places the assigned padlock on the device to prevent its unintentional reactivation. An appropriate tag is applied stating the person's name, at least 3" x 6" in size, an easily noticeably color, and states not to operate device or remove tag. If this device is a non-lockable circuit breaker or fuse, replace circuit with a "dummy" device and tag it appropriately as mentioned above.
4) Ensure that the equipment is disconnected from the energy sources' by first checking that no personnel are exposed, then verify the isolation of the equipment by operating the push button or other normal operating controls' or by testing to make certain the equipment will not operate. . Be sure to return any switches to the "OFF" position.
5) The equipment is now locked out and ready for the required maintenance or service.
Restoring Equipment to Service
1) Check the lift and the immediate area around the lift to ensure that nonessential items have been removed (clear all tools, vehicles and personnel) and that the completion of all lift components are operationally intact.
2) The authorized person can now remove the lock (or dummy circuit breaker or fuse) and tag. Activate the energy isolating device so that the lift may again be placed into operation.
成分-
優質液壓油，防止漏油
液壓系統采用高質量的油，提供更好的耐腐蝕性和高/低溫靈活性，允許單元在40華氏度和105華氏度之間的溫度下運行。
自動焊接
該閥采用細鋼焊接而成，操作方便，密封性好，性能可靠，具有自動鎖氣滴料功能。
高密度鋼材
由高級鋼材制成，并按照嚴格的質量和耐用性標準建造。
