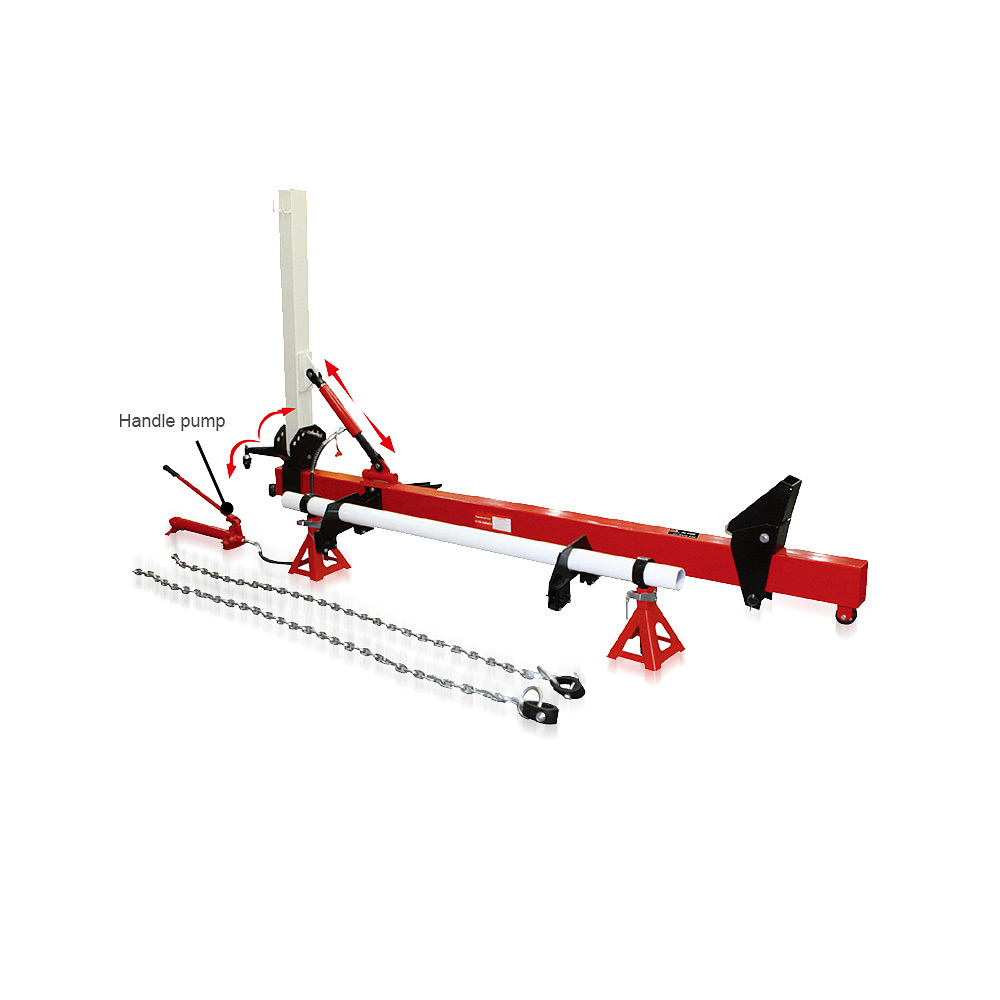

This product can easily repair auto bodies at various stages of damage and can also straighten independent twist damages. The body straightener can be hooked up for sag or kick up, for mash, for mash with sag, for center sway, for sway with mash perimeter frame, for sway and mash unitized body, and for front end sway. They also provide an alternate hook up for front end sway as also for cars in an overall diamond condition.
|
Model |
TPC08001 |
Capacity |
3 Ton |
|
Maximum Log |
160 mm |
Working Range |
540 mm |
|
Vertiacl Ram Travel |
145 mm |
N.W./G.W. |
28/32 kgs |
|
Package Size |
1120x380x275 mm |
QTY/20'CY |
224 PCS |
• High-quality structural steel
• Available with hand pumps or foot pumps
• Optional overhead boom
If you use and maintain your equipment properly, it will give you many years of service. Follow the
maintenance instructions carefully to keep your equipment in good working condition. Never perform any
maintenance on the equipment while it is under a load.
Cleaning
If the moving parts of the equipment are obstructed, use cleaning solvent or another good degreaser to clean
the equipment. Remove any existing rust, with a penetrating lubricant.
Lubrication
This equipment will not operate safely without proper lubrication. Using the equipment without proper
lubrication will result in poor performance and damage to the equipment. Some parts in this equipment are not
self-lubricating inspect the equipment before use and lubricate when necessary. After cleaning, lubricate the
equipment using light penetrating oil, lubricating spray.
-Use a good lubricant on all moving parts.
-For light duty applications, use lubrication once a month.
-For heavy and constant application, weekly lubrication is recommended.
-NEVER USE SANDPAPER OR ABRASIVE MATERIAL ON THESE SURFACES!
With release valve closed, an upward stroke of the long ram handle draws oil from the reservoir tank into
the plunger cavity. Hydraulic pressure holds the valve closed, which keeps the oil in the plunger cavity. A
downward stroke of the long ram handle releases oil into the cylinder, which forces the ram out. This raises
the hydraulic ram. When the ram reaches maximum extension, oil is bypassed back into the reservoir to
prevent an over extended ram stroke and possible damage to the long ram. Opening the release valve allows
oil to flow back into reservoir. This releases hydraulic pressure on the ram, which results in lowering the
hydraulic ram.
Storing the Crane
1. Lower the Lifting Arm.
2. Place the handle in the upright position.
3. Store in a dry location, recommended indoors.
Note: If the crane is stored outdoors, be sure to lubricate all parts before and after use to ensure the crane
stays in good working condition.
成分-
優質液壓油，防止漏油
液壓系統采用高質量的油，提供更好的耐腐蝕性和高/低溫靈活性，允許單元在40華氏度和105華氏度之間的溫度下運行。
自動焊接
該閥采用細鋼焊接而成，操作方便，密封性好，性能可靠，具有自動鎖氣滴料功能。
高密度鋼材
由高級鋼材制成，并按照嚴格的質量和耐用性標準建造。
